最高可配四个第二代英特尔® 至强® 可扩展处理器，每个处理器最多可配 28 个核心
(Dell Technologies 推荐使用商用 Windows 11 专业版)Canonical® Ubuntu® Server LTSCitrix® Hypervisor ®Microsoft® Windows Server® with Hyper-VRed Hat® Enterprise LinuxSUSE® Linux Enterprise ServerVMware® ESXi®
Up to two double-width GPUsUp to two full-height FPGAs
DIMM 速度高达 2933 MT/s 内存类型RDIMMLRDIMMNVDIMMDCPMM（英特尔® 傲腾™ DC 持久内存）内存模块插槽48 个 DDR4 DIMM 插槽（仅支持 12 个 NVDIMM 或 24 个 DCPMM 插槽）仅支持寄存式 ECC DDR4 DIMM最大 RAMRDIMM 3 TBLRDIMM 6 TB NVDIMM 384 GBDCPMM 12.28 TB（采用 LRDIMM 时为 15.36 TB）
Front Bays Up to 8 x 2.5” SAS/SATA (HDD/SSD) max 61.44TBUp to 24 x 2.5” SAS/SATA (HDD/SSDs) with up to 12 NVMe PCIe SSDs max 184.32TBUp to 24 x NVMe PCIe SSDs max 153TBRear BaysUp to 2 x 2.5” SAS/SATA (HDD/SSD), max 15.36TB
内部控制器PERC H330、H730P、H740P、HBA330软件 RAIDS140外部 HBA（非 RAID）12 Gbps SAS HBA外部 PERC (RAID)H840启动优化型存储子系统HWRAID：2 个 M.2 SSD（120 GB、240 GB）
加密签名的固件安全启动 安全擦除晶片信任根系统锁定（需要 OpenManage Enterprise）TPM 1.2/2.0、TCM 2.0（可选）
嵌入式/服务器级iDRAC9 iDRAC DirectiDRAC RESTful API（采用 Redfish）英特尔®标准可管理性 OpenManage Enterprise-Modular Quick Sync 2 BLE/无线模块控制台OpenManage EnterpriseOpenManage Power Center移动性OpenManage Mobile 工具Dell EMC RACADM CLI Dell EMC Repository ManagerDell EMC System UpdateDell EMC Server Update UtilityDell EMC Update CatalogsiDRAC Service Module IPMI 工具 OpenManage Server Administrator OpenManage Storage ServicesOpenManage IntegrationsBMC Truesight Microsoft® System CenterRedHat® Ansible® ModulesVMware® vCenterOpenManage ConnectionsIBM Tivoli Netcool/OMNIbus Micro Focus Operations Manager I Nagios® Core Nagios® XI
750W Platinum750W 240VDCiPlatinum750W Titanium1100 Platinum1100W 240VDCi Platinum1100W - 48VDC Gold1600W Platinum2000W Platinum2400W PlatinumHot plug power supplies with full redundancy optionUp to 6 hot plug fans with N +1 redundancy
Network Options4 x 1GbE4 x 10GbE2 x 10GbE + 2 x 1GbE2 x 25GbE Front Ports1 x Dedicated iDRAC direct USB 2 x USB 2.01 x USB 3.0 (optional on the 8-drive configuration only)1 x VGARear Ports1 x Dedicated iDRAC port 1 x Serial2 x USB 3.01 x VideoInternal Ports1 x USB 3.0
PCIe6 x Gen3 slotsVideo Card1 x VGA
可选的液晶屏挡板或安全挡板

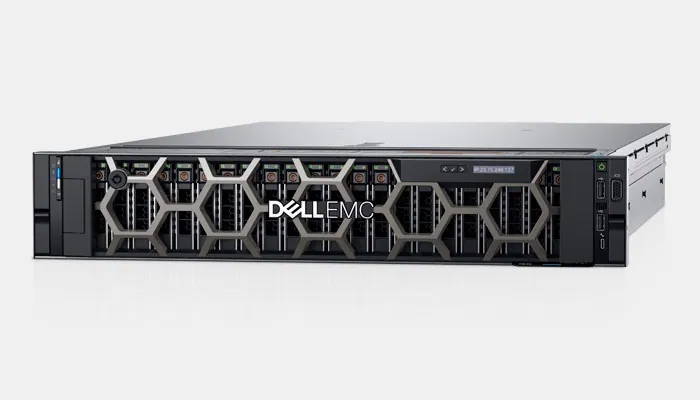

2U Rack Server
高86.8 毫米 (3.4")宽434.0 毫米 (17.8")深835.9 毫米 (32.9")重量 36.6 千克（80.7 磅）
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
